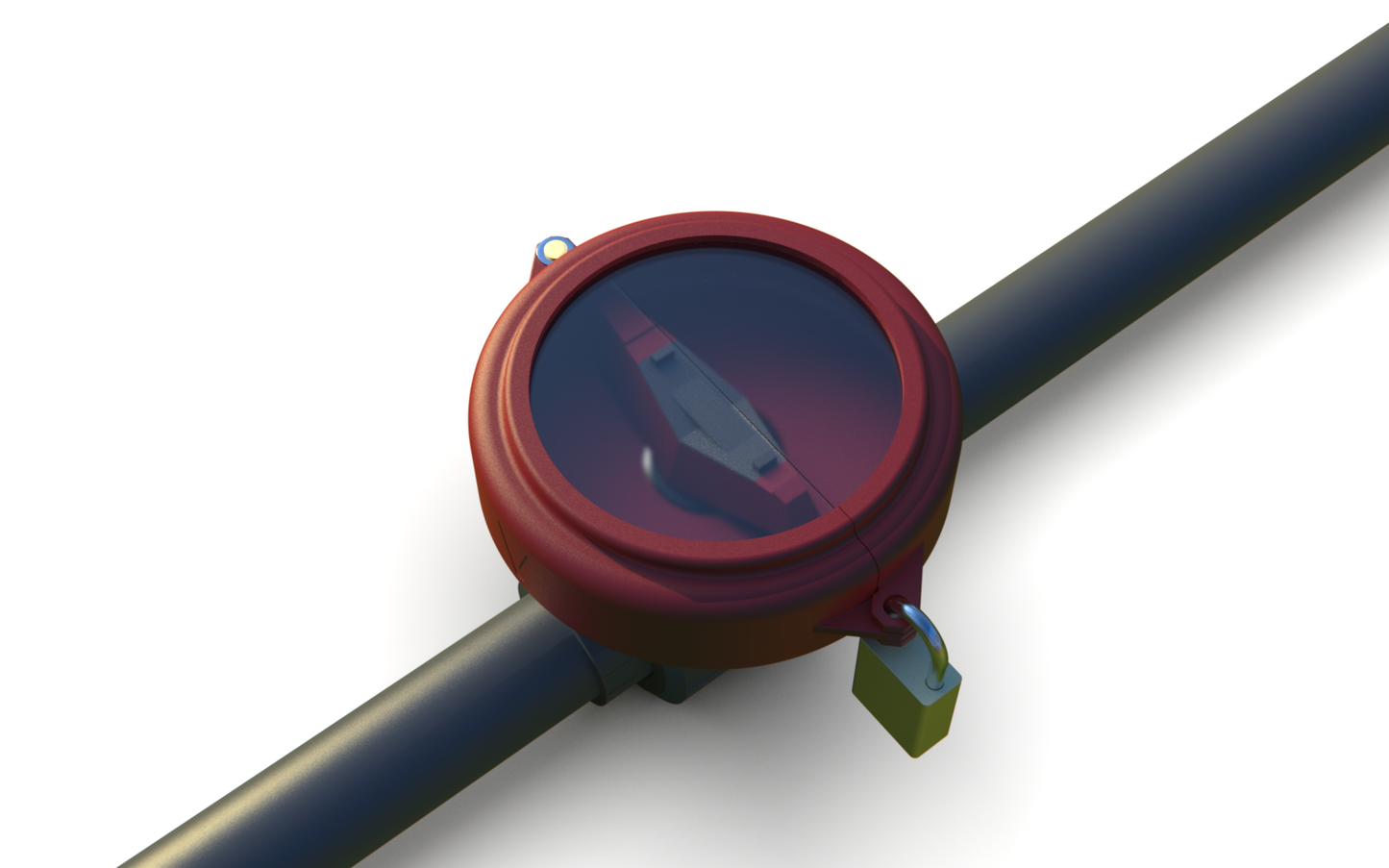

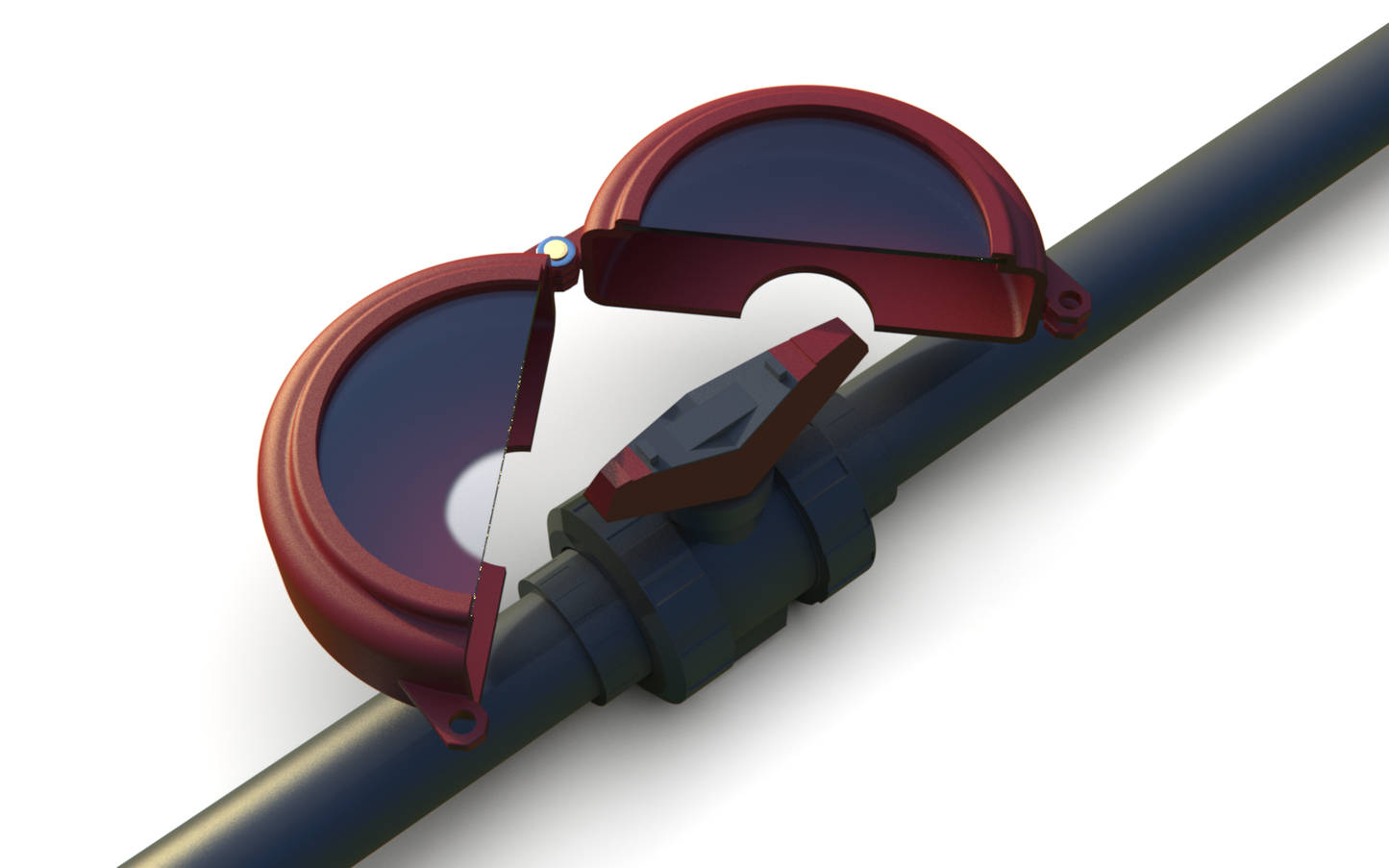

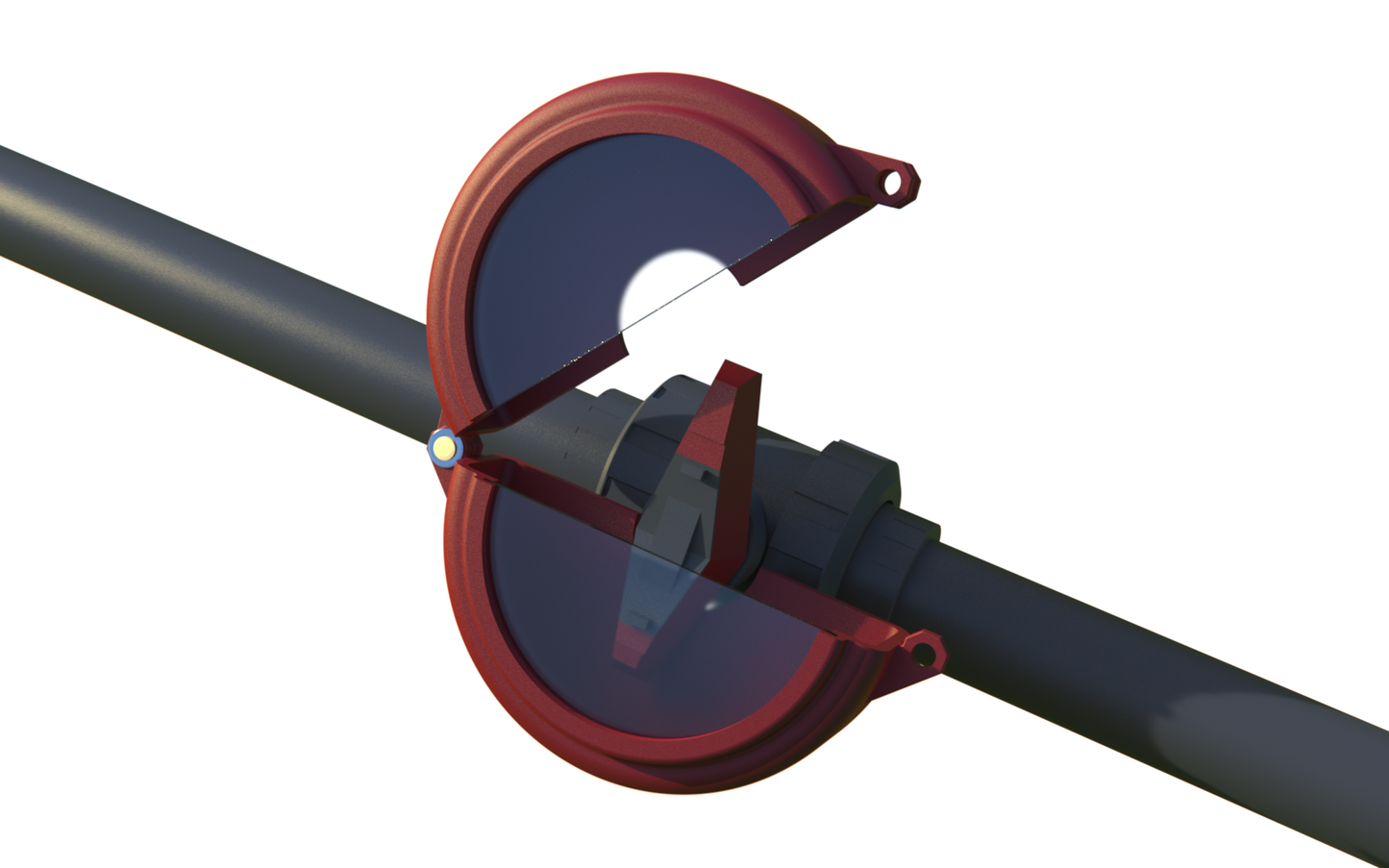

Valve Lockout

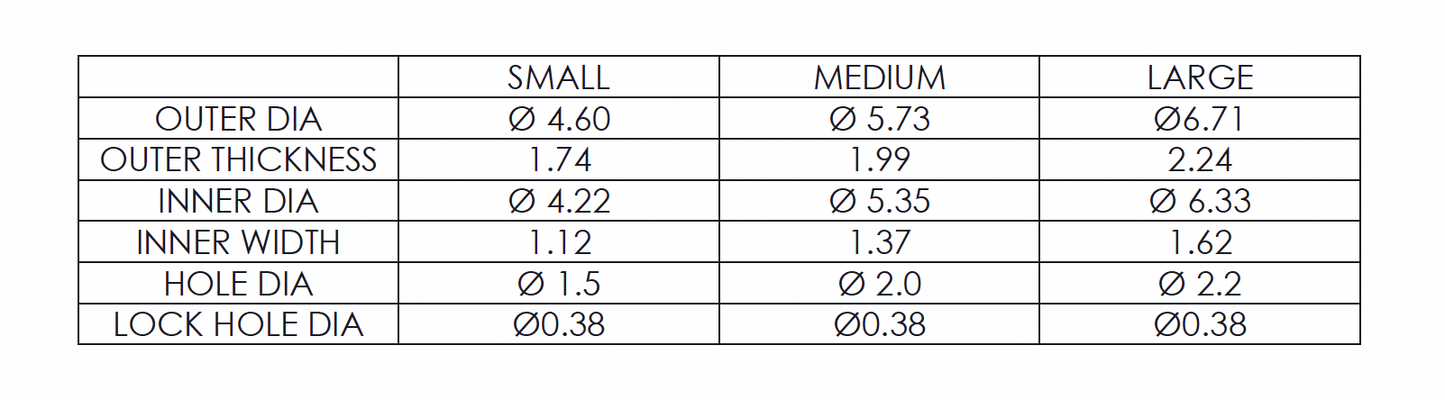

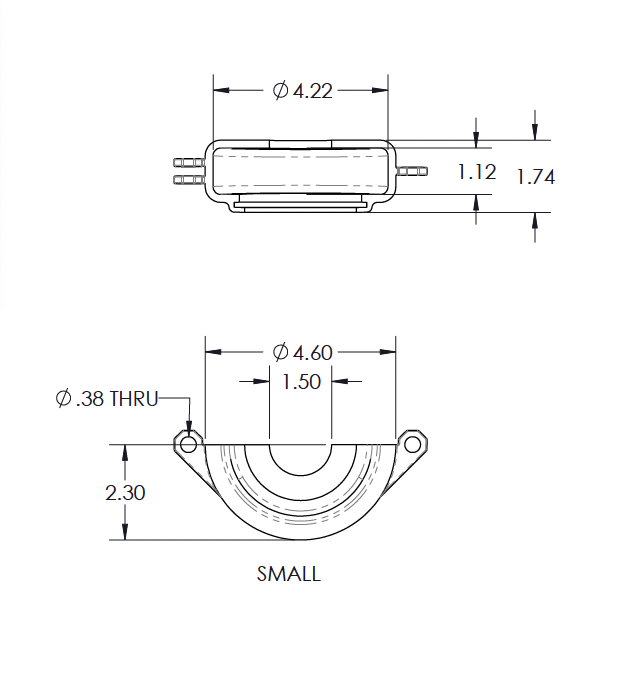

Small

• Outer Dia - Ø 4.60

• Outer Thickness - 1.74

•Inner Dia - Ø 4.22

•Inner Width - 1.12

•Hole Dia - Ø 1.5

•Lock Hole Dia - Ø 0.38

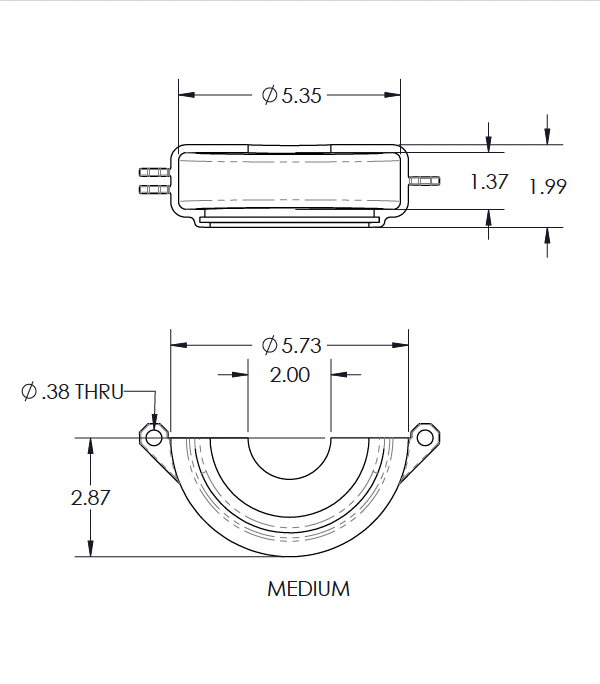

Medium

• Outer Dia - Ø 5.73

• Outer Thickness - 1.99

•Inner Dia - Ø 5.35

•Inner Width - 1.37

•Hole Dia - Ø 2.0

•Lock Hole Dia - Ø 0.38

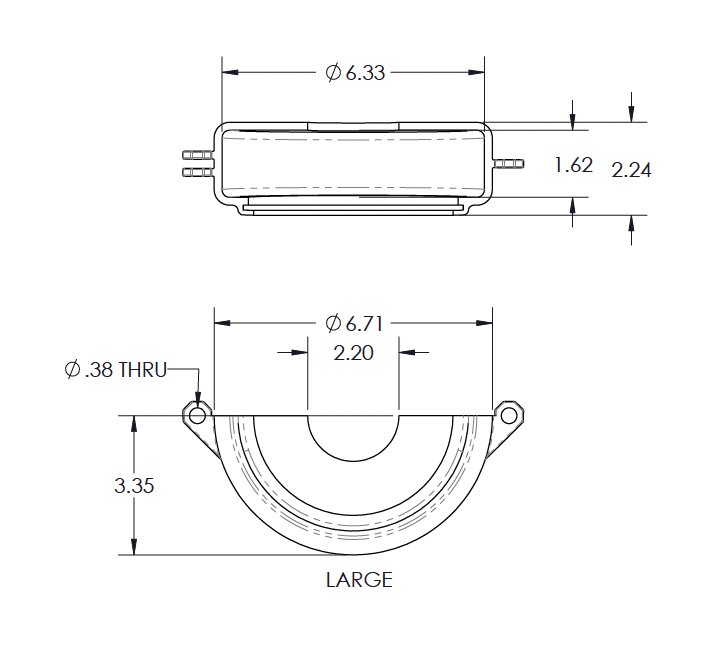

Large

• Outer Dia - Ø 6.71

• Outer Thickness - 2.24

•Inner Dia - Ø 6.33

•Inner Width - 1.62

•Hole Dia - Ø 2.2

•Lock Hole Dia - Ø 0.38

Thermoplastic bodies withstand chemicals and extreme temperatures.

Built to endure the harshest conditions, ensuring longevity in diverse environments.

Robust construction that stands up to the toughest challenges, making Cholla the reliable choice.
